5/16" Dia, 0.8120" LOC, 5/16" Shank Dia, 4 Flute, 30 Degree Helix, Ti-NAMITE-C (TiCN) Coated, Series 54S, High Shear, Square End End Mill - 35508

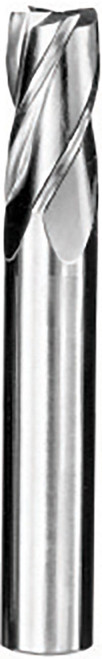

5/16" Dia, 4 Flute, Square End End Mill - 35508
SGS
$63.35
- SKU:
- 35508
- UPC:
- 691781355085
- Minimum Purchase:
- 1 unit
- Series Description:
- General Application End Mill - High Shear
- Number of Flutes:
- 4
- Shank Length (LS) (Decimal Inch):
- 1.6880
- Cutting Diameter (DC) Tolerance (Decimal Inch):
- +0.0000/-0.0020
- Cutting Diameter (DC) Tolerance (mm):
- +0.000/-0.050
- Shank Diameter (DCON) Tolerance (ISO):
- h6
- [Table]Weldon Flat:
- No
- Additional Geometry:
- Right Hand Cut Direction (RHC)
- Helix Angle:
- Right Spiral
- Helix Angle (Degree):
- 30
- Variable Helix:
- No
- Chip Breaker:
- No
- Literature 5:
- https://s3-us-west-2.amazonaws.com/catsy.739/Series_52-54_Speed_and_Feed.pdf
- Literature 5 Thumbnail:
- https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4070506495/Series_52-54_Speed_and_Feed.jpg
- Literature 5 Name:
- Series 52-54 Speed and Feed (PDF)
- US Stock:
- 0
- Worldwide Stock:
- 0
- Shank Type:
- Straight
- Cutting Diameter (DC) (Fractional Inch):
- 5/16
- Overall Length (LF) (Fractional Inch):
- 2-1/2
- Rake Angle:
- Positive
- Shipping Weight:
- 0.0940
- Center Cutting:
- Yes
- Series:
- 54S
- Weldon Flat:
- No
- Shank Length (LS) (mm):
- 42.88
- Shank Diameter (DCON) (Fractional Inch):
- 5/16
- Tool Length:
- Regular
- CAD 1:
- https://s3-us-west-2.amazonaws.com/catsy.739/35508.STEP
- CAD 1 Thumbnail:
- https://s3-us-west-2.amazonaws.com/catsy.739/STEP_Thumbnail.jpg
- CAD 2 Thumbnail:
- https://s3-us-west-2.amazonaws.com/catsy.739/DXF_Thumbnail.jpg
- CAD 1 Name:
- 35508.STEP
- CAD 2 Name:
- 35508.DXF
- APEX URL:
- https://apex.kyocera-sgstool.com/easa/applink/redirect.easap?path=u12/Easap1&app=mill&edp=35508
- CAD 2:
- https://s3-us-west-2.amazonaws.com/catsy.739/35508.DXF
- [Table]End Configuration:
- Square End
- [Table]Shank Diameter (DCON) (Decimal Inch):
- 0.3125
- [Table]Shank Diameter (DCON) (mm):
- 7.94
- [Table]Length of Cut (APMX) (Decimal Inch):
- 0.8120
- [Table]Length of Cut (APMX) (mm):
- 20.62
- [Table]Overall Length (LF) (Decimal Inch):
- 2.5000
- [Table]Overall Length (LF) (mm):
- 63.50
- [Table]Coolant Option:
- External Coolant
- [Table]Coating Description:
- TiCN (Ti-NAMITE-C)
- Flute Type:
- Spiral
- Unit (inch/mm):
- inch
- Primary Workpiece Material:
- (N) Non-Ferrous Materials
- [Table]Cutting Diameter (DC) (Decimal Inch):
- 0.3125
- [Table]Cutting Diameter (DC) (mm):
- 7.94
