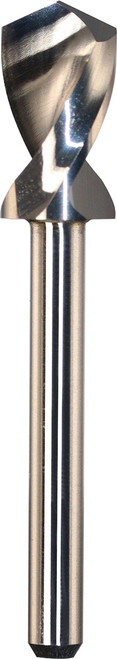

SGS 4.95mm Dia, 130 Degree Point, Solid Carbide Drill - 06129 - Image 1

4.95mm Dia, 130 Degree Point, Solid Carbide Drill - 06129

SGS

$19.19
(No reviews yet) Write a Review
SKU:
06129
UPC:
691781061290
Minimum Purchase:
1 unit
Feature 1:
4-Faceted point geometry provides centering assistance upon entry
Feature 2:
Mirror Surface Finish is Applied to Allow for Smooth Chip Flow
Feature 3:
Optimal End Geometry Ideal for Targeted Non-ferrous Materials
Series Description:
Micro Drill - Inverse Diameter
Number of Flutes:
2
Secondary Workpiece Material:
(S) High Temp Alloy
Size:
4.95mm
Shank Length (LS) (Decimal Inch):
1.0000
Shank Diameter (DCON) Tolerance (ISO):
h6
Additional Geometry:
Right Hand Cut Direction (RHC)
Helix Angle:
Right Spiral
Helix Angle (Degree):
30
KPT Micro Crossover (Old Material Number):
8502192
KPT Micro Crossover (Part Number):
155-1949.500
KPT Micro Crossover Type:
Direct Match
US Stock:
0
Worldwide Stock:
0
Overall Length (OAL) (Fractional Inch):
1-1/2
Number of Margins:
1
Shank Type:
Straight
Shipping Weight:
0.0150
Center Cutting:
No
Series:
M155
Shank Length (LS) (mm):
25.40
Feature 4:
Manufactured in accordance with KSPT ISO certified quality procedures
Shank Diameter (DCON) (Fractional Inch):
1/8
CAD 1:
https://s3-us-west-2.amazonaws.com/catsy.739/06129.STEP
CAD 1 Thumbnail:
https://s3-us-west-2.amazonaws.com/catsy.739/STEP_Thumbnail.jpg
CAD 2 Thumbnail:
https://s3-us-west-2.amazonaws.com/catsy.739/DXF_Thumbnail.jpg
CAD 1 Name:
06129.STEP
CAD 2 Name:
06129.DXF
Literature 1:
https://s3-us-west-2.amazonaws.com/catsy.739/SGS_Micro_Tool_Catalog_2023.pdf
Literature 1 Thumbnail:
https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4070555069/SGS_Micro_Tool_Catalog_2023.jpg
Literature 1 Name:
SGS Micro Tool Catalog 2023 (PDF)
APEX URL:
https://apex.kyocera-sgstool.com/easa/applink/redirect.easap?path=u12/Easap1&app=drill&edp=06129
CAD 2:
https://s3-us-west-2.amazonaws.com/catsy.739/06129.DXF
[Table]Shank Diameter (DCON) (Decimal Inch):
0.1250
[Table]Shank Diameter (DCON) (mm):
3.18
[Table]Usable Length (LU) (Decimal Inch):
0.5000
[Table]Usable Length (LU) (mm):
12.70
[Table]Flute Length (LCF) (Decimal Inch):
0.5000
[Table]Flute Length (LCF) (mm):
12.70
[Table]Overall Length (OAL) (Decimal Inch):
1.5000
[Table]Overall Length (OAL) (mm):
38.10
[Table]Point Angle (Degree):
130
[Table]Coolant Option:
External Coolant
[Table]Coating Description:
Bright/Uncoated
Double Margins (Yes/No):
No
Flute Type:
Spiral
Unit (inch/mm):
mm
Primary Workpiece Material:
(N) Non-Ferrous Materials
[Table]Cutting Diameter (DC) (Decimal Inch):
0.1949
[Table]Cutting Diameter (DC) (mm):
4.95
4.95mm Dia, 130 Degree Point, 3.18mm Shank Dia, 38.10mm OAL, 2 Flute, Uncoated, Series M155, Micro - Inverse Diameter, Solid Carbide Drill - 06129
!
