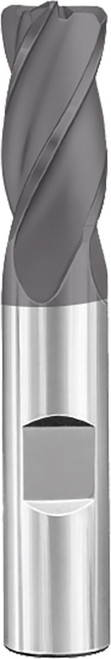

3/8" Dia, 4 Flute, Corner Radius End Mill - 38048

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

38048

UPC:

691781380483

Minimum Purchase:

1 unit

Series Description:

General Application End Mill

Literature 5 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4070506472/Series_1-3-5-14-15-16-17-23-24-59_Speed_and_Feed.jpg

CAD 1 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/STEP_Thumbnail.jpg

CAD 2 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/DXF_Thumbnail.jpg

Literature 5 Name:

Series 1-3-5-14-15-16-17-23-24-59 Speed and Feed (PDF)

CAD 1 Name:

38048.STEP

CAD 2 Name:

38048.DXF

Literature 5:

https://s3-us-west-2.amazonaws.com/catsy.739/Series_1-3-5-14-15-16-17-23-24-59_Speed_and_Feed.pdf

CAD 1:

https://s3-us-west-2.amazonaws.com/catsy.739/38048.STEP

Feature 1:

Weldon Flat

Number of Flutes:

4

Shank Type:

Weldon (Drive Flat)

Weldon Flat:

Yes

Helix Angle:

Right Spiral

Secondary Workpiece Material:

(H) Hardened Materials

Shank Diameter (DCON) (Fractional Inch):

3/8

Helix Angle (Degree):

30

Chip Breaker:

No

Cutting Diameter (DC) (Fractional Inch):

3/8

Length of Cut (APMX) (Fractional Inch):

1

Overall Length (LF) (Fractional Inch):

2-1/2

Additional Geometry:

Right Hand Cut Direction (RHC)

Tool Length:

Regular

Rake Angle:

Positive

Cutting Diameter (DC) Tolerance (Decimal Inch):

+0.0000/-0.0020

Cutting Diameter (DC) Tolerance (mm):

+0.000/-0.050

Shank Diameter (DCON) Tolerance (ISO):

h6

Shank Length (LS) (Decimal Inch):

1.5000

Shank Length (LS) (mm):

38.10

Shank Length (LS) (Fractional Inch):

1-1/2

Corner Radius (RE) Tolerance (Decimal Inch):

+0.0000/-0.0020

Corner Radius (RE) Tolerance (mm):

+0.000/-0.050

Center Cutting:

Yes

Variable Helix:

No

Series:

01C

Shipping Weight:

0.1310

APEX URL:

https://apex.kyocera-sgstool.com/easa/applink/redirect.easap?path=u12/Easap1&app=mill&edp=38048

CAD 2:

https://s3-us-west-2.amazonaws.com/catsy.739/38048.DXF

[Table]End Configuration:

Corner Radius

[Table]Shank Diameter (DCON) (Decimal Inch):

0.3750

[Table]Shank Diameter (DCON) (mm):

9.53

[Table]Length of Cut (APMX) (Decimal Inch):

1.0000

[Table]Length of Cut (APMX) (mm):

25.40

[Table]Overall Length (LF) (Decimal Inch):

2.5000

[Table]Overall Length (LF) (mm):

63.50

[Table]Corner Radius (RE) (Decimal Inch):

0.0200

[Table]Corner Radius (RE) (mm):

0.51

[Table]Coolant Option:

External Coolant

[Table]Coating Description:

TiN (Ti-NAMITE)

Flute Type:

Spiral

Unit (inch/mm):

inch

Primary Workpiece Material:

(P) Steel|(M) Stainless Steel|(K) Cast Iron|(N) Non-Ferrous Materials|(S) High Temp Alloy

[Table]Cutting Diameter (DC) (Decimal Inch):

0.3750

[Table]Cutting Diameter (DC) (mm):

9.53
