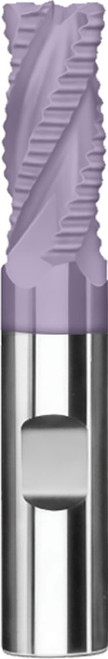

3/4" Dia, 4 Flute, Chip Breaker Corner Radius End Mill - 36226

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

36226

UPC:

691781362267

Minimum Purchase:

1 unit

US Stock:

24

Worldwide Stock:

0

Feature 1:

Weldon Flat

Feature 2:

Chip Breakers

Series:

62

Series Description:

General Application End Mill - Fine Pitch

Tool Length:

Regular

Number of Flutes:

4

Secondary Workpiece Material:

(H) Hardened Materials

Cutting Diameter (DC) (Fractional Inch):

3/4

Shank Diameter (DCON) (Fractional Inch):

3/4

Length of Cut (APMX) (Fractional Inch):

1-5/8

Overall Length (LF) (Fractional Inch):

4

Shank Length (LS) (Decimal Inch):

2.3750

Shank Length (LS) (Fractional Inch):

2-3/8

Shank Length (LS) (mm):

60.33

Cutting Diameter (DC) Tolerance (Decimal Inch):

+0.0000/-0.0040

Cutting Diameter (DC) Tolerance (mm):

+0.000/-0.100

Shank Diameter (DCON) Tolerance (ISO):

h6

Corner Radius (RE) Tolerance (Decimal Inch):

+0.0050/-0.0050

Corner Radius (RE) Tolerance (mm):

+0.127/-0.127

Shank Type:

Weldon (Drive Flat)

Weldon Flat:

Yes

Additional Geometry:

Chip Breaker / Right Hand Cut Direction (RHC)

Rake Angle:

Positive

Helix Angle:

Right Spiral

Helix Angle (Degree):

40

Variable Helix:

No

Center Cutting:

Yes

Chip Breaker:

Yes

Shipping Weight:

0.8160

Literature 5:

https://s3-us-west-2.amazonaws.com/catsy.739/Series_62_Speed_and_Feed.pdf

CAD 1:

https://s3-us-west-2.amazonaws.com/catsy.739/36226.STEP

Literature 5 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4070506503/Series_62_Speed_and_Feed.jpg

CAD 1 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/STEP_Thumbnail.jpg

CAD 2 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/DXF_Thumbnail.jpg

Literature 5 Name:

Series 62 Speed and Feed (PDF)

CAD 1 Name:

36226.STEP

CAD 2 Name:

36226.DXF

APEX URL:

https://apex.kyocera-sgstool.com/easa/applink/redirect.easap?path=u12/Easap1&app=mill&edp=36226

CAD 2:

https://s3-us-west-2.amazonaws.com/catsy.739/36226.DXF

[Table]End Configuration:

Chip Breaker (CR)

[Table]Shank Diameter (DCON) (Decimal Inch):

0.7500

[Table]Shank Diameter (DCON) (mm):

19.05

[Table]Length of Cut (APMX) (Decimal Inch):

1.6250

[Table]Length of Cut (APMX) (mm):

41.28

[Table]Overall Length (LF) (Decimal Inch):

4.0000

[Table]Overall Length (LF) (mm):

101.60

[Table]Corner Radius (RE) (Decimal Inch):

0.0600

[Table]Corner Radius (RE) (mm):

1.52

[Table]Coolant Option:

External Coolant

[Table]Coating Description:

AlTiN (Ti-NAMITE-A)

Flute Type:

Spiral

Unit (inch/mm):

inch

Primary Workpiece Material:

(M) Stainless Steel|(S) High Temp Alloy

[Table]Cutting Diameter (DC) (Decimal Inch):

0.7500

[Table]Cutting Diameter (DC) (mm):

19.05
