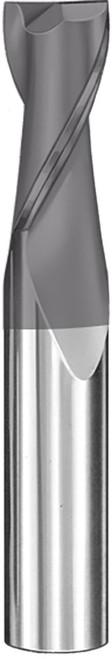

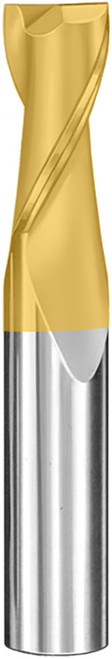

3/16" Dia, 5/8" LOC, 3/16" Shank Dia, 2 Flute, 30 Degree Helix, Di-NAMITE (Diamond) Coated, Series 03S, Square End End Mill - 91274
3/16" Dia, 2 Flute, Square End End Mill - 91274
SGS
$221.70
- SKU:
- 91274
- UPC:
- 691781912745
- Minimum Purchase:
- 1 unit
- Series:
- 03S
- Series Description:
- General Application End Mill
- Number of Flutes:
- 2
- Secondary Workpiece Material:
- (H) Hardened Materials
- Cutting Diameter (DC) (Fractional Inch):
- 3/16
- Length of Cut (APMX) (Fractional Inch):
- 5/8
- Overall Length (LF) (Fractional Inch):
- 2
- Shank Length (LS) (Decimal Inch):
- 1.3750
- Shank Length (LS) (Fractional Inch):
- 1-3/8
- Shank Length (LS) (mm):
- 34.93
- Cutting Diameter (DC) Tolerance (Decimal Inch):
- +0.0000/-0.0020
- Cutting Diameter (DC) Tolerance (mm):
- +0,000/-0,050
- Shank Diameter (DCON) Tolerance (ISO):
- h6
- Shank Type:
- Straight
- Weldon Flat:
- No
- Additional Geometry:
- Right Hand Cut Direction (RHC)
- Rake Angle:
- Positive
- Helix Angle:
- Right Spiral
- Helix Angle (Degree):
- 30
- Variable Helix:
- No
- Center Cutting:
- Yes
- Chip Breaker:
- No
- Shipping Weight:
- 0.0280
