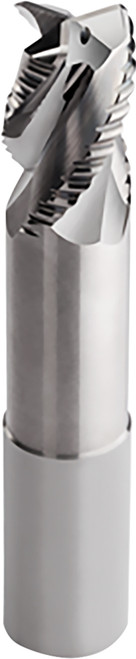

25.00mm Dia, 3 Flute, Chip Breaker Corner Radius End Mill - 44694

Rating Required Select Rating 1 star (worst) 2 stars 3 stars (average) 4 stars 5 stars (best)

Name Required

Email Required

Review Subject Required

Comments Required

SKU:

44694

UPC:

691781446943

Minimum Purchase:

1 unit

Feature 1:

Open Flute Design

Feature 2:

Specially Engineered Flute Space

Feature 3:

Symmetrical End Gashing

Series Description:

S-Carb APR

High Performance:

Yes

Number of Flutes:

3

Cutting Diameter (DC) Tolerance (Decimal Inch):

-0.0004/-0.0040

Cutting Diameter (DC) Tolerance (mm):

-0.010/-0.100

Shank Diameter (DCON) Tolerance (ISO):

h6

Corner Radius (RE) Tolerance (Decimal Inch):

+0.0020/-0.0020

Corner Radius (RE) Tolerance (mm):

+0.050/-0.050

Additional Geometry:

Right Hand Cut Direction (RHC)

Helix Angle:

Right Spiral

Helix Angle (Degree):

38

Variable Helix:

No

Chip Breaker:

Yes

Product Logo:

https://s3-us-west-2.amazonaws.com/catsy.739/Series_APR3_Logo.jpg

Literature 3:

https://s3-us-west-2.amazonaws.com/catsy.739/SGS_Aluminum_Machining_Solutions.pdf

Literature 3 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4067622781/SGS_Aluminum_Machining_Solutions.jpg

Literature 3 Name:

SGS Aluminum Machining Solutions (PDF)

US Stock:

0

Worldwide Stock:

0

Shank Type:

Straight

Rake Angle:

Positive

Literature 4:

https://s3-us-west-2.amazonaws.com/catsy.739/SGS_Tooling_Matrix_2025.pdf

Literature 4 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/_lg/4072925394/SGS_Tooling_Matrix_2025.jpg

Literature 4 Name:

SGS Tooling Matrix 2025 (PDF)

Shipping Weight:

2.1100

Center Cutting:

Yes

Series:

APR

Weldon Flat:

No

Tool Length:

Stub

CAD 1:

https://s3-us-west-2.amazonaws.com/catsy.739/44694.STEP

CAD 1 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/STEP_Thumbnail.jpg

CAD 2 Thumbnail:

https://s3-us-west-2.amazonaws.com/catsy.739/DXF_Thumbnail.jpg

CAD 1 Name:

44694.STEP

CAD 2 Name:

44694.DXF

APEX URL:

https://apex.kyocera-sgstool.com/easa/applink/redirect.easap?path=u12/Easap1&app=mill&edp=44694

CAD 2:

https://s3-us-west-2.amazonaws.com/catsy.739/44694.DXF

[Table]End Configuration:

Chip Breaker (CR)

[Table]Shank Diameter (DCON) (Decimal Inch):

0.9843

[Table]Shank Diameter (DCON) (mm):

25.00

[Table]Length of Cut (APMX) (Decimal Inch):

1.3780

[Table]Length of Cut (APMX) (mm):

35.00

[Table]Reach (LU) (Decimal Inch):

3.1496

[Table]Reach (LU) (mm):

80.00

[Table]Overall Length (LF) (Decimal Inch):

5.5118

[Table]Overall Length (LF) (mm):

140.00

[Table]Neck Diameter (DN) (Decimal Inch):

0.9350

[Table]Neck Diameter (DN) (mm):

23.75

[Table]Corner Radius (RE) (Decimal Inch):

0.1181

[Table]Corner Radius (RE) (mm):

3.00

[Table]Coolant Option:

Internal Coolant

[Table]Coating Description:

TIB2 (Ti-NAMITE-B)

Flute Type:

Spiral

Unit (inch/mm):

mm

Primary Workpiece Material:

(N) Non-Ferrous Materials

[Table]Cutting Diameter (DC) (Decimal Inch):

0.9843

[Table]Cutting Diameter (DC) (mm):

25.00
